Model-CT

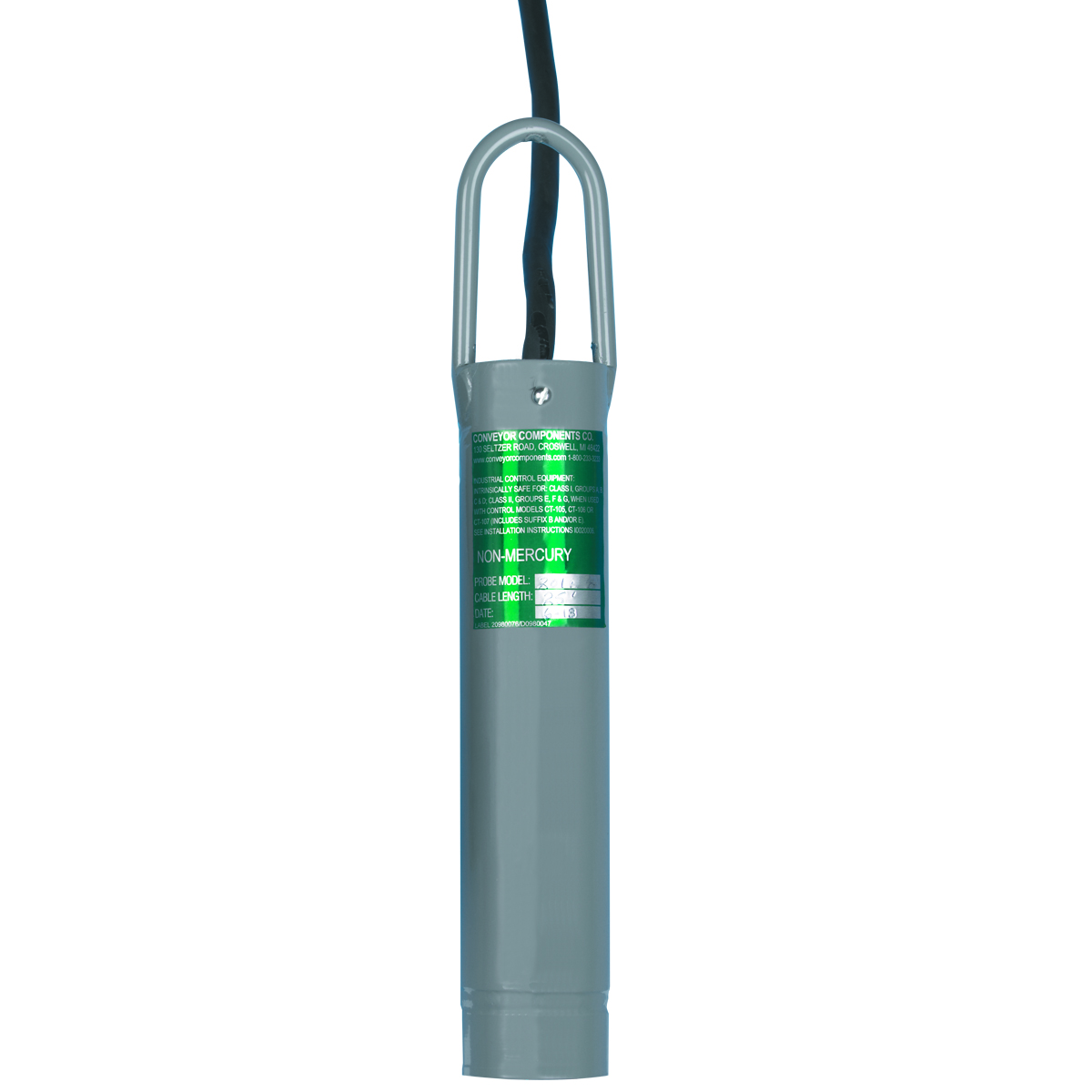

CT201G-1

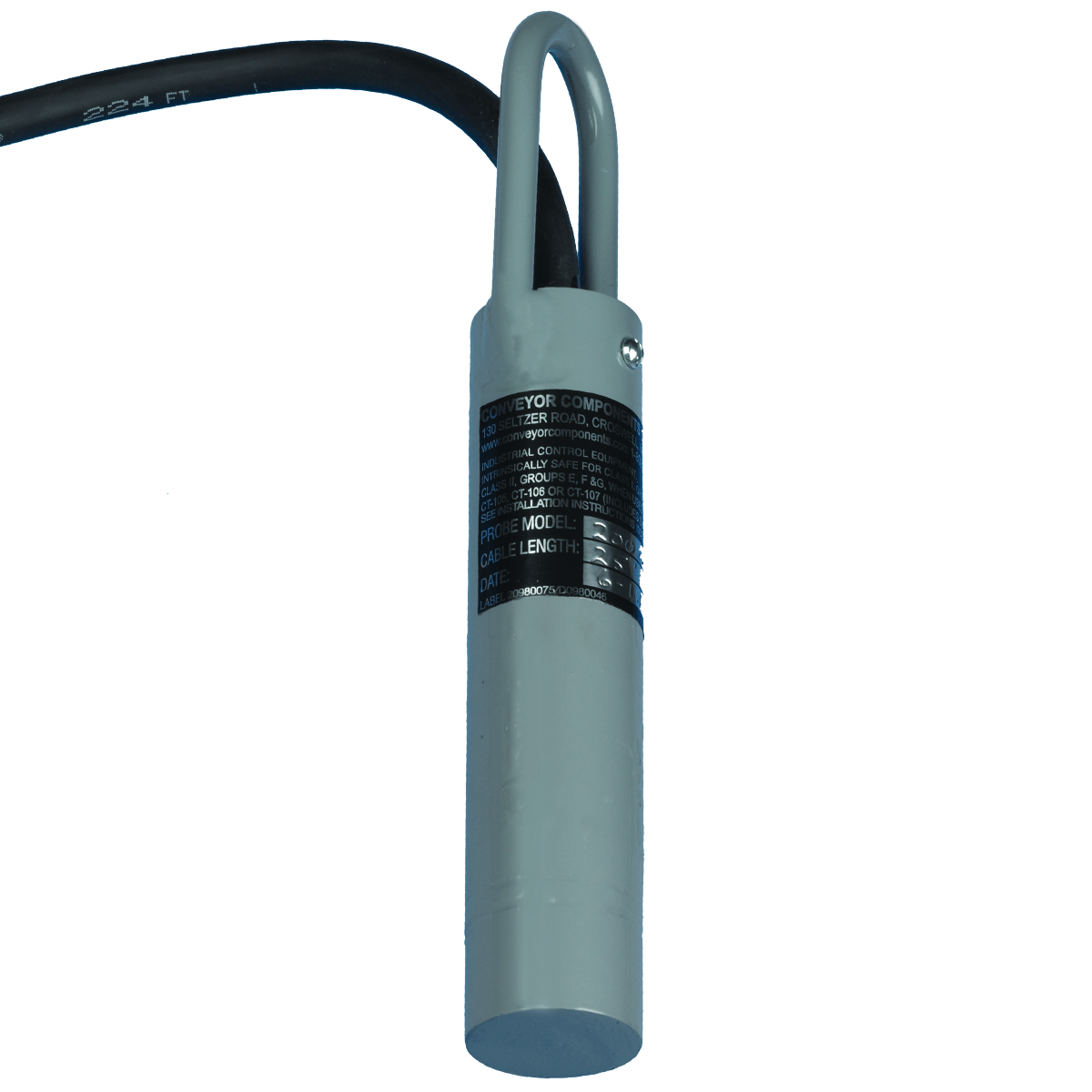

CT200G-1

Model-CT

WHAT IS IT?

The Model CT is comprised of a Control Unit and Tilt Probe senses the presence or absence of material. The new intrinsically safe, cULus Listed Control Unit is enclosed in rugged cast aluminum housing with LED Indicator lights and surface mount printed circuit board. Weatherproof, Dust-Ignition Proof and Explosion Proof models are available. The rugged steel sensing Probes are cULus listed as intrinsically safe when used with the new cULus Listed Model CT Control Units CT-105, CT-106 or CT-107.

WHY IS IT NECESSARY?

The Model CT is commonly used when other controls won’t work due to bin vibration, or actual bin walls aren’t available for mounting other controls. Typical applications include level detection in hoppers, silos, stackers, crushers and conveyor transfer points.

Call for Quote
SKU: CT-parent Category:
Documents For CT
Catalogs
Model-CT Catalog
Manuals
Model-CT Manual English
Model-CT Manual Spanish

Models

The following models are the available options for this industrial-grade safety product. Choose the one that best suits your needs and requirements. We have the same industrial-grade safety products that the industry uses to safeguard against the risks involved in operating conveyor equipment at scale.
Model SWITCH TYPE CONTACT VOLTAGE RATING(S) NEMA LIGHT
CT-200G 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200GC 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200GP 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200SG 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200SGC 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200SGP 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201G 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201GC 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201GC-3/4 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201GP 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201SG 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201SGC 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201SGC-3/4 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201SGP 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200GN 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200GNC 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200SGN 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201GN 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201GNC 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201GNC-3/4 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201SGN 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200GH 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-200GHC 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201GH 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-201SGH 1 SINGLE POLE SINGLE THROW SWITCH(S) (SP/ST)1.5 A @ 120 VAC, 1.5 A @ 5 VDC, 1 A @ 12 VDC, 0.5 A @ 24 VDCIntrinsically safe for NEMA Type 7: Class I, (Div. 1 & 2) Groups A, B, C & D; and Type 9: Class II, (Div. 1 & 2) Groups E, F & G when properly installed with a CT-105/106/107 series (UL 7th ed.) or 103/104 series (UL 5th ed.) control unit only View
CT-105 1 DOUBLE POLE DOUBLE THROW RELAY(S) (DP/DT)5A @ 120V AC; 5A @ 240V ACNEMA Type 3, 4, 4X View
CT-105B 1 DOUBLE POLE DOUBLE THROW RELAY(S) (DP/DT)5A @ 120V AC; 5A @ 240V ACNEMA Type 3, 4, 4X View
CT-105C 1 DOUBLE POLE DOUBLE THROW RELAY(S) (DP/DT)5A @ 120 VAC; 5A @ 240 VAC; 5A @ 30 VACNEMA Type 3, 4, 4X View
CT-106 1 DOUBLE POLE DOUBLE THROW RELAY(S) (DP/DT)5A @ 120V AC; 5A @ 240V ACNEMA Type 3, 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
CT-106B 1 DOUBLE POLE DOUBLE THROW RELAY(S) (DP/DT)5A @ 120V AC; 5A @ 240V ACNEMA Type 3, 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
CT-107 1 DOUBLE POLE DOUBLE THROW RELAY(S) (DP/DT)5A @ 120V AC; 5A @ 240V ACNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
CT-107B 1 DOUBLE POLE DOUBLE THROW RELAY(S) (DP/DT)5A @ 120V AC; 5A @ 240V ACNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View

Compatible Accessories

Select the accessory you need from the table below, click the model number to learn more.

Item Number Description Quantity
CR-61

S.S. 4 Vane 6" O.D. Paddle
CR-64

Rubber Flex Paddle
CR-65

S.S. Flex Paddle
CT-300G

16-3 SO (3 conductor) probe cable
CT-400

1-1/4" NPT tilt probe bracket
CT-400S

1-1/4" NPT tilt probe bracket, stainless steel
CT-500

S-Hook, 2" heavy duty, zinc-plated
CT-500S

S-Hook, 2" heavy duty, stainless steel
CT-600S

Float ball, 304 stainless steel, 4" diameter with 3/4" NPT coupling (use with CT-200SGC or CT-201SGC-3/4)
CT-700

Attachment adapter, 303 stainless steel, 3/4" MNPT (use with CT-201G-3/4 probe or any Model CR Paddle)
20020206

Model CT-105/CT-106/CT-107 replacement electronic circuit board assembly, 120 VAC.
20020208

Model CT-105B/CT-106B/CT-107B replacement electronic circuit board assembly, 240 VAC
