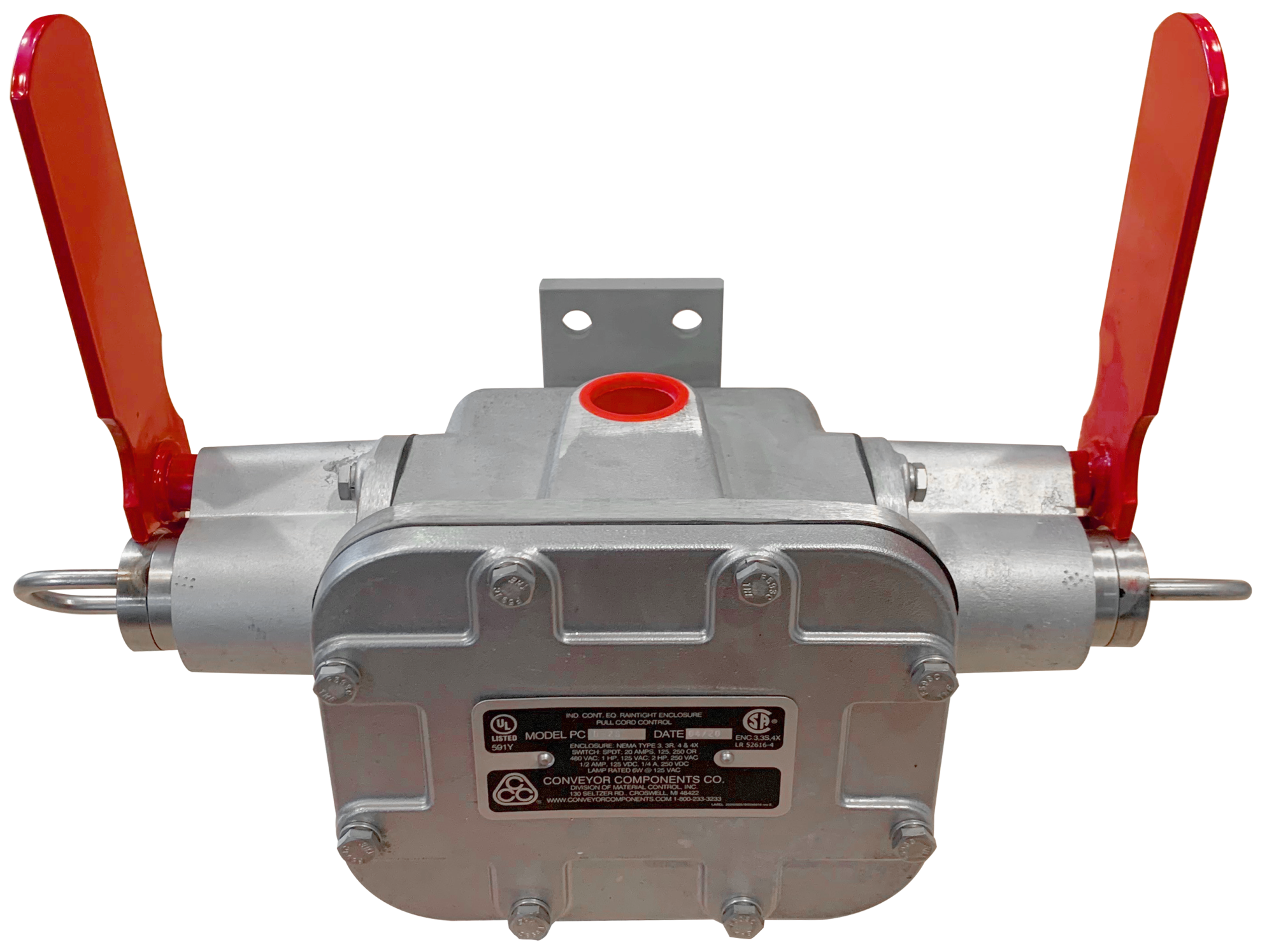

Model-PC

WHAT IS IT?

The Model PC is a rugged safety switch that provides a quick positive shut off of dangerous equipment in emergencies or normal operation. It is actuated by cable pulled by endangered personnel. The output contacts of the Model PC can control up to two separate circuits, one for machinery shutdown and one for alarm.

WHY IS IT NECESSARY?

Safety minded operators of conveyors, production lines, elevator equipment, assembly lines, material handling systems, cranes, etc. consider it a must for employee protection. Most states have safety statutes that require these switches on conveyors and related equipment. American National Standard Institute recommends their use in ANSI standard No. ASME B20.1 – 2012-5.11. This ANSI standard will probably soon become part of the William-Steiger Act of 1970- the OSHA act.

Call for Quote

SKU: PC-parent Category: Safety Controls

Most Popular Models

The following models are the available options for this industrial-grade safety product. Choose the one that best suits your needs and requirements. We have the same industrial-grade safety products that the industry uses to safeguard against the risks involved in operating conveyor equipment at scale.

Model	SWITCH TYPE	CONTACT VOLTAGE RATING(S)	NEMA
PCD-4S	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) PER END (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 3, 3S, 4, 4X	Buy now
PCD-4SX	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) PER END (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G	Buy now
PCR-2S	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 3, 3S, 4, 4X	Buy now
PCL-2S	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 3, 3S, 4, 4X	Buy now

Specialty Models

Model	SWITCH TYPE	CONTACT VOLTAGE RATING(S)	NEMA	LIGHT
PCD-4SL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) PER END (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 3, 3S, 4, 4X	✕
PCD-4T	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) PER END (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 3, 3S, 4, 4X
PCD-4TL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) PER END (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 3, 3S, 4, 4X	✕
PCD-4SD	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) PER END (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G
PCD-4TD	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) PER END (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G
PCD-4TDL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) PER END (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G	✕
PCD-4SXL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) PER END (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G	✕
PCD-4TX	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) PER END (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G
PCD-4TXL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) PER END (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G	✕
PCR-2SL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 3, 3S, 4, 4X	✕
PCR-2T	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 3, 3S, 4, 4X
PCR-2TL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 3, 3S, 4, 4X	✕
PCR-2SD	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G
PCR-2SDL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G	✕
PCR-2TD	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G
PCR-2TDL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G	✕
PCR-2SX	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G
PCR-2SXL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G	✕
PCR-2TX	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G
PCR-2TXL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G	✕
PCL-2SL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 3, 3S, 4, 4X	✕
PCL-2T	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 3, 3S, 4, 4X
PCL-2TL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 3, 3S, 4, 4X	✕
PCL-2SD	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G
PCL-2SDL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G	✕
PCL-2TD	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G
PCL-2TDL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 4, Type 9: Class II (Div. 1 & 2), Groups E, F & G	✕
PCL-2SX	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G
PCL-2SXL	2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)	20A @ 480V max AC; 10A, tungsten @ 125 V AC; 1 hp 125V AC; 2 hp 250V AC; ½ A @ 125V DC; ¼ A @ 250V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G	✕
PCL-2TX	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G
PCL-2TXL	2 TWO CIRCUIT DOUBLE BREAK MICROSWITCH(S) (TC/DB)	15A @ 600V max AC; ½ hp 120V AC; 1 hp 240V AC; pilot duty 690VA @ 600V max; 0.8A @ 115V DC; 0.4A @ 230V DC	NEMA Type 7: Class I, Groups C, D; Type 9: Class II, Groups E, F, G	✕

Compatible Accessories

Select the accessory you need from the table below, click the model number to learn more.

Item Number	Description	Quantity
PCD-K	Double-ended (PCD units) accessory mounting kit includes: 2 pieces (105 feet each) pull cable (PC-25), 20 eyebolts (PC-27), 8 cable clamps (PC-28), 1 mounting bracket (PC-30).	Quantity:	Buy now
PCLR-K	Single-ended (PCL & PCR units) accessory mounting kit includes: 1 piece (105 feet) pull cable (PC-25), 10 eyebolts (PC-27), 4 cable clamps (PC-28), 1 mounting bracket (PC-30).	Quantity:	Buy now
RS-25-105	105 FT 3/32" Orange Vinyl Coated Cable, 3/16" O.D.	Quantity:	Buy now
RS-25-500	500 FT 3/32" Orange Vinyl Coated Cable, 3/16" O.D.	Quantity:	Buy now
RS-25-1000	1,000 FT 3/32" Orange Vinyl Coated Cable, 3/16" O.D.	Quantity:	Buy now
RS-25-5000	5,000 FT 3/32" Orange Vinyl Coated Cable, 3/16" O.D.	Quantity:
RS-23-KIT	PKG OF 10 RS-23 EYEBOLTS & PKG OF 4 RS-28 CABLE END FITTINGS	Quantity:
RS-27-KIT	RS-27 EYEBOLT, END FITTING & HARDWARE KIT CONSISTING OF: 10 - RS-27 EYEBOLTS 20 - 1/2-13 HEX NUTS - Zinc Plated. 10 - 1/2 LOCKWASHERS - Zinc Plated. 4 - RS-28 CABLE END FITTINGS	Quantity:	Buy now
RS-27K-BK	BULK PACK (100) RS-27 EYEBOLT & HARDWARE KIT CONSISTING OF: 100 - RS-27 EYEBOLTS (10 packs of 10). 200 - 1/2-13 HEX NUTS - Zinc Plated. 100 - 1/2 LOCKWASHERS - Zinc Plated.	Quantity:	Buy now
RS-28K-BK	Cable End Fitting/Cable Clamp, 10 packs of 4. 40 pcs. total.	Quantity:	Buy now
PC-29	Conduit Plug, 1" NPT	Quantity:
PC-29X	Conduit Plug, 1" NPT ("D" & "X" models)	Quantity:
PC-30	PC Mounting Bracket	Quantity:
