Model-DB

Bundle To SAVE!

DB_1
DB_2
DB_3
DB_4

Model-DB

WHAT IS IT?

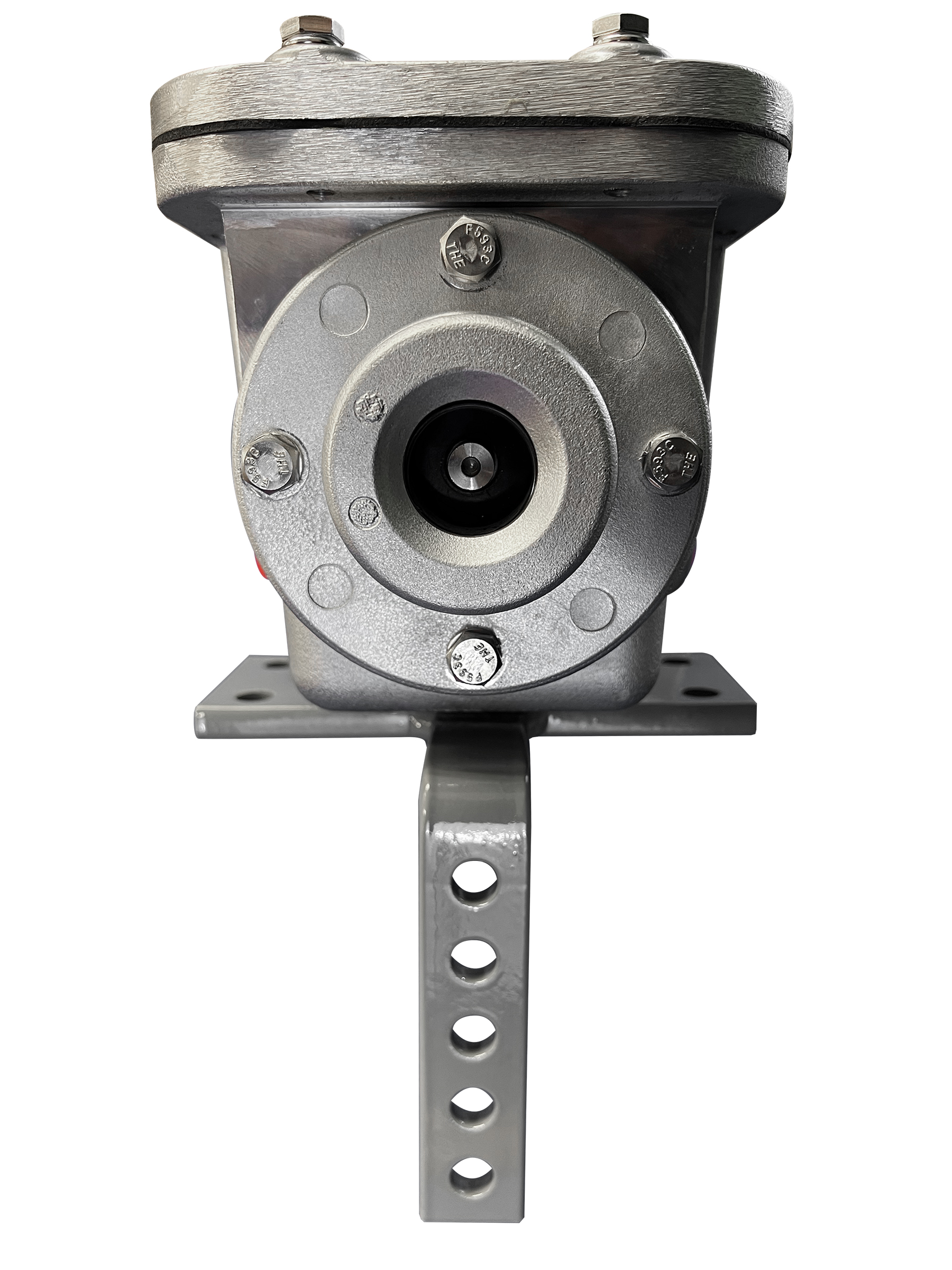

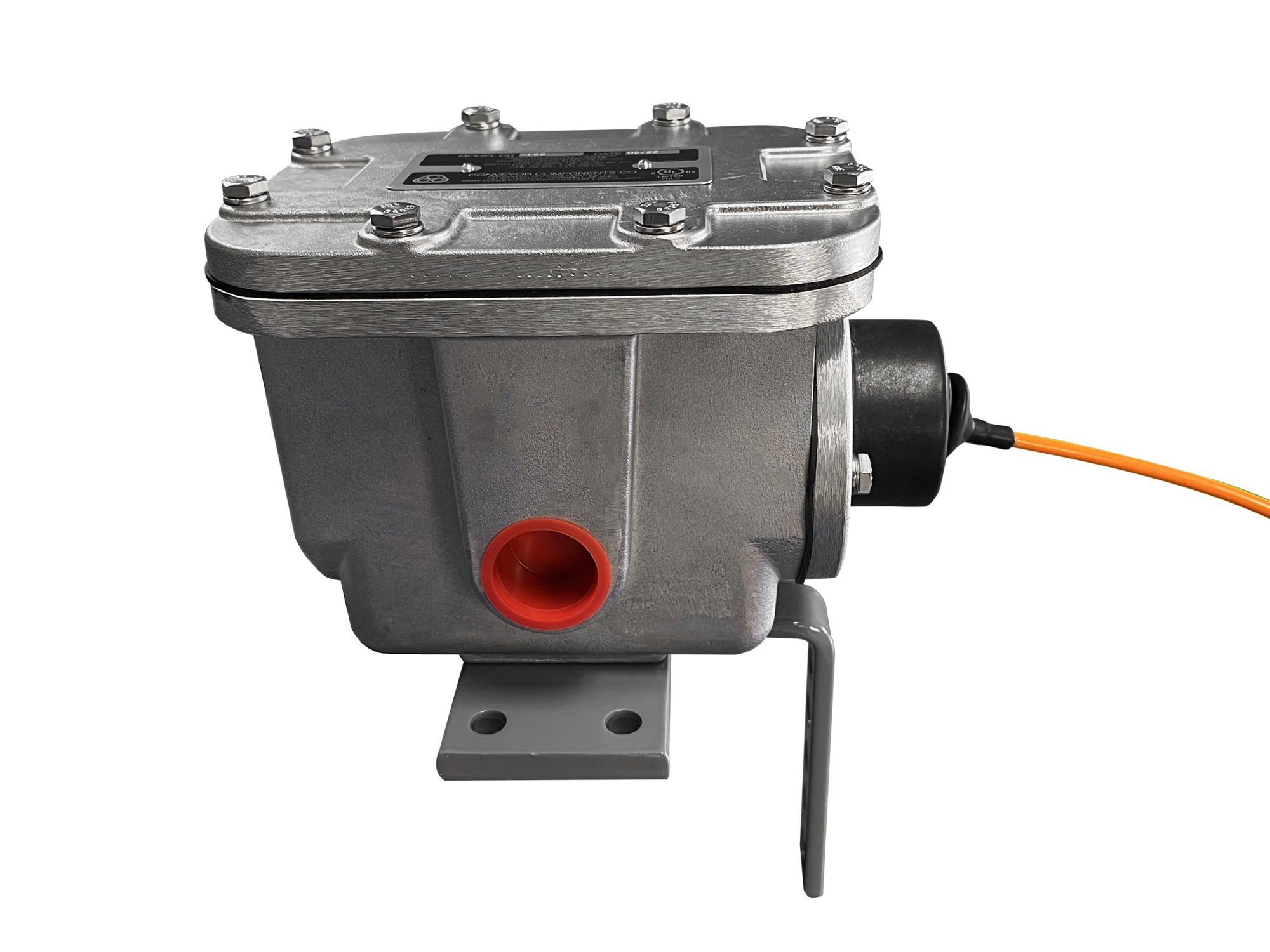

The Model DB is a cable operated damaged belt detector that looks for punctures, tears, or protrusions through the conveyor belt and provides a means of automatic shutdown to limit the amount of damage to the conveyor belt. The output contacts of the Model DB can control up to two separate circuits, one for machinery shutdown and one for an alarm.

WHY IS IT NECESSARY?

The model DB provides substantial cost savings in replacement belting and downtime associated with belt splicing or replacement.

Call for Quote
SKU: DB-parent Category:
Documents For DB
Catalogs
Model-DB Catalog
Manuals
Model-DB Manual English
Model-DB Manual Spanish

Models

The following models are the available options for this industrial-grade safety product. Choose the one that best suits your needs and requirements. We have the same industrial-grade safety products that the industry uses to safeguard against the risks involved in operating conveyor equipment at scale.
Model Description SWITCH TYPE CONTACT VOLTAGE RATING(S) NEMA
DB-100 Damaged Belt Detector unit NEMA 4 & 4X with 2 Single Pole Double Throw Microswitch 4 lb of pull force. 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X View
DB-108 Damaged Belt Detector unit NEMA 4 & 4X with 2 Single Pole Double Throw Microswitch 8 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X View
DB-116 Damaged Belt Detector unit NEMA 4 & 4X with 2 Single Pole Double Throw Microswitch 16 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X View
DB-500 Damaged Belt Detector unit NEMA 4 & 4X with 2 Double Pole Double Throw Microswitch 4 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X View
DB-508 Damaged Belt Detector unit NEMA 4 & 4X with 2 Double Pole Double Throw Microswitch 8 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X View
DB-516 Damaged Belt Detector unit NEMA 4 & 4X with 2 Double Pole Double Throw Microswitch 16 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X View
DBD-100 Damaged Belt Detector unit NEMA 4, 4X & 9 with 2 Single Pole Double Throw Microswitch 4 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBD-108 Damaged Belt Detector unit NEMA 4, 4X & 9 with 2 Single Pole Double Throw Microswitch 8 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBD-116 Damaged Belt Detector unit NEMA 4, 4X & 9 with 2 Single Pole Double Throw Microswitch 16 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBD-500 Damaged Belt Detector unit NEMA 4, 4X & 9 with 2 Double Pole Double Throw Microswitch 4 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBD-508 Damaged Belt Detector unit NEMA 4, 4X & 9 with 2 Double Pole Double Throw Microswitch 8 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBD-516 Damaged Belt Detector unit NEMA 4, 4X & 9 with 2 Double Pole Double Throw Microswitch 16 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 4, 4X; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBX-100 Damaged Belt Detector unit NEMA 7 & 9 with 2 Single Pole Double Throw Microswitch 4 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBX-108 Damaged Belt Detector unit NEMA 7 & 9 with 2 Single Pole Double Throw Microswitch 8 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBX-116 Damaged Belt Detector unit NEMA 7 & 9 with 2 Single Pole Double Throw Microswitch 16 lb of pull force 2 SINGLE POLE DOUBLE THROW MICROSWITCH(S) (SP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBX-500 Damaged Belt Detector unit NEMA 7 & 9 with 2 Double Pole Double Throw Microswitch 4 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBX-508 Damaged Belt Detector unit NEMA 7 & 9 with 2 Double Pole Double Throw Microswitch 8 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View
DBX-516 Damaged Belt Detector unit NEMA 7 & 9 with 2 Double Pole Double Throw Microswitch 16 lb of pull force 2 DOUBLE POLE DOUBLE THROW MICROSWITCH(S) (DP/DT)20A @ 125V, 250V or 480V AC; 1 hp @ 125V AC; 2 hp @ 250V AC; ½ A @ 125V DC; ¼ A @ 250V DCNEMA Type 7: Class I (Div. 1 & 2), Groups C & D; Type 9: Class II (Div. 1 & 2), Groups E, F & G View

Compatible Accessories

Select the accessory you need from the table below, click the model number to learn more.

Item Number Description Quantity
20340008

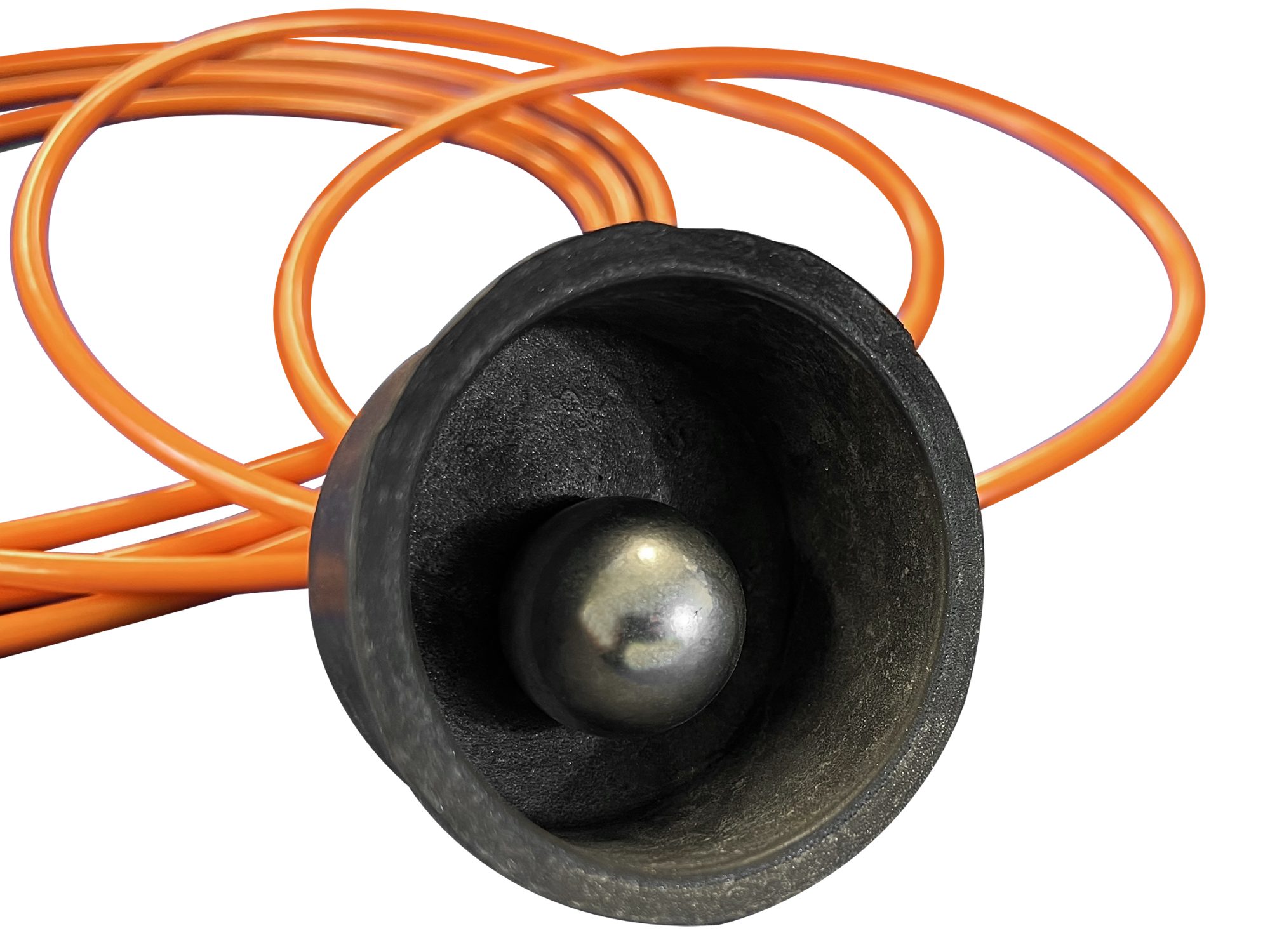

DB ball & 10 foot cable assembly with protective rubber boot
DB-29

Conduit Plug, 1" NPT
RS-28K-BK

Cable End Fitting/Cable Clamp, 10 packs of 4. 40 pcs. total.
